Single Pocket Door Frame

Single Pocket Door Frame

Product Description:

Our sliding pocket door kit includes:

  • All the galvanized steel uprights and horizontals required to build the pocket, plus the track.
  • The brackets to fit the frame to the studwork that double as drywall positioners and supports
  • Adjustable pocket entrance floor guide for 1-3/8 in. or 1-3/4 in. doors
  • Runners with chrome steel ‘sealed for life’ bearings
  • A spring steel door brake (soft close option available)
  • Installation instructions
  • Lifetime guarantee

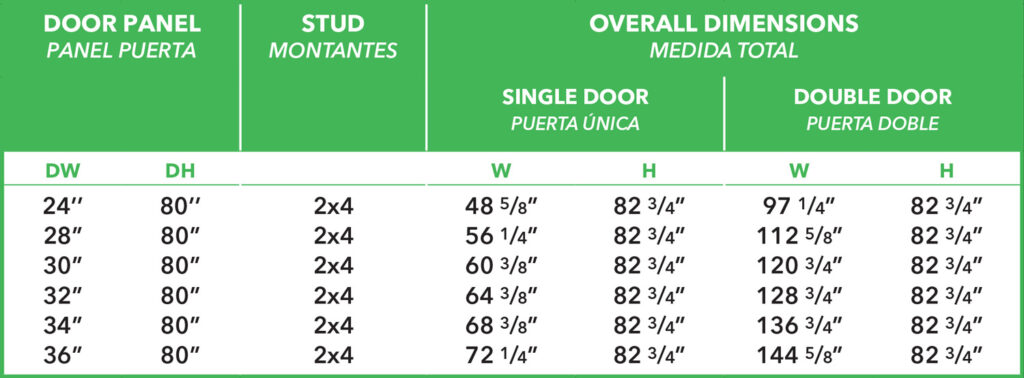

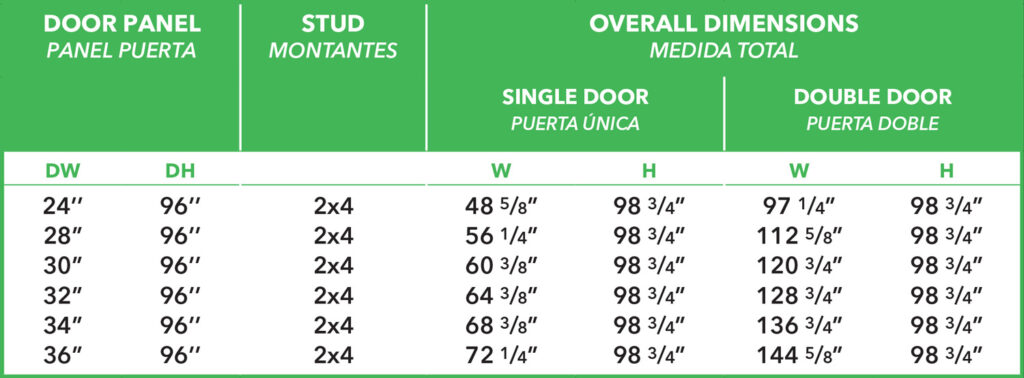

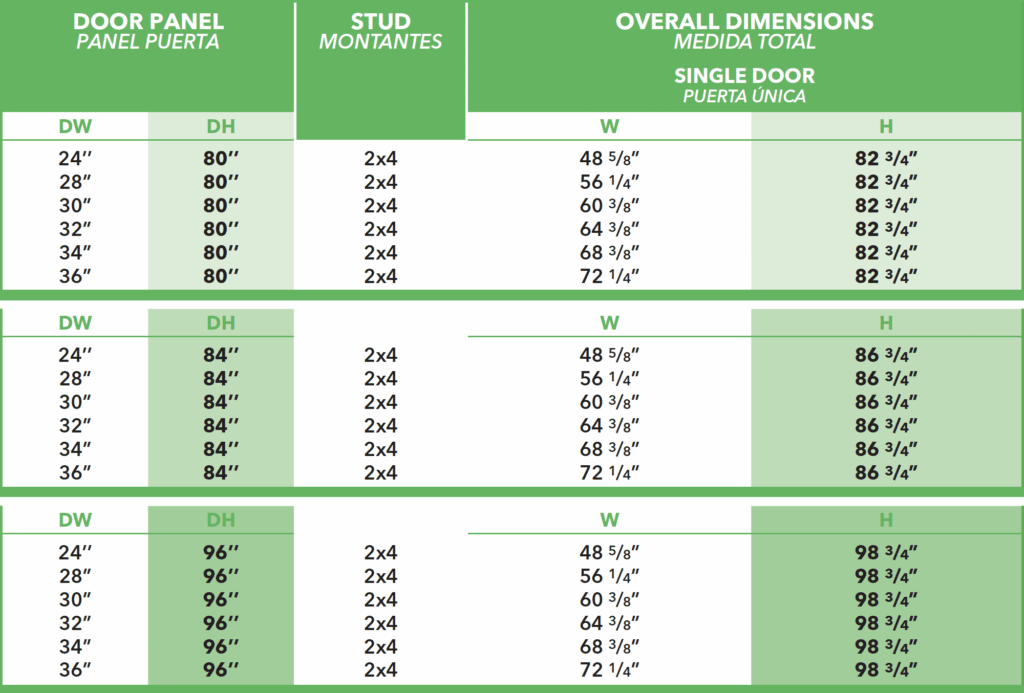

Single Pocket Door Specifications:

This kit is suitable for:

  • 1-3/8 in. – 1-3/4 in. thick doors
  • Up to 130 lbs. in weight
  • Fits 2×4 stud as well as other sizes – see below*
  • 1/2 in. standard drywall
  • Double doors (just order two)

What do I need to supply?

  • Door Panel 1-3/8 in. or 1-3/4 in. thick, max weight 130 lbs.
  • Studwork
  • 1/2 in. standard drywall
  • Wood jambs (see instructions)



*Different size studwork can be used however the head timber above the track needs to always be 2×4, additional layers of drywall on each side can then be used to make up the difference.
If you are still unsure please email us at info@rocketdoorframes.com or call 770-252-2661.
