Double Pocket Door Frame

Double Pocket Door Frame

The Double Rocket Pocket Kit is simply two singles joined together. Each pocket door frame includes a joining kit so there is no extra cost.

Product Description:

This kit includes:

  • Complete galvanized steel pocket – all the uprights, horizontals, and fixings required to build the pocket.
  • Smooth and Quiet Runners – with chrome steel ‘sealed for life’ bearings that insert easily into the track and have a fluid, quiet movement.
  • Adjustable pocket entrance guide which will enable you to assemble the kit for a 1-3/8 in. or 1-3/4 in. door.
  • Door brackets for the top of the door, rear doorstop, soft brake, and fixings.
  • Adjustable bolt and nuts for runners plus spanner.
  • Screws to assemble frame and screws to attach drywall to pocket.
  • Full instructions and an installation video available on our website.
  • Lifetime guarantee

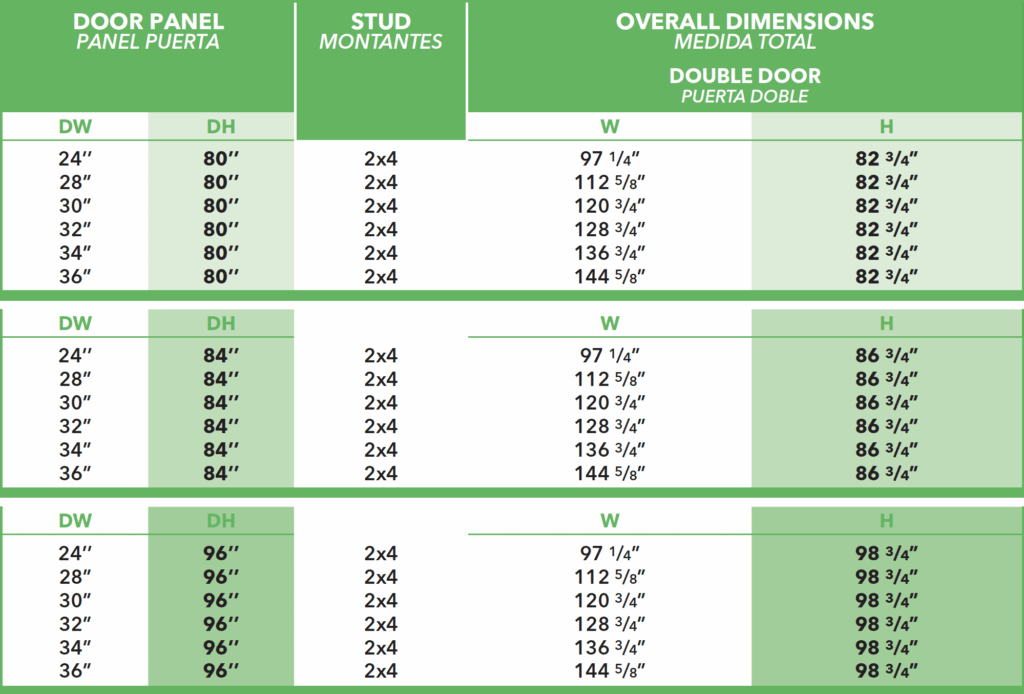

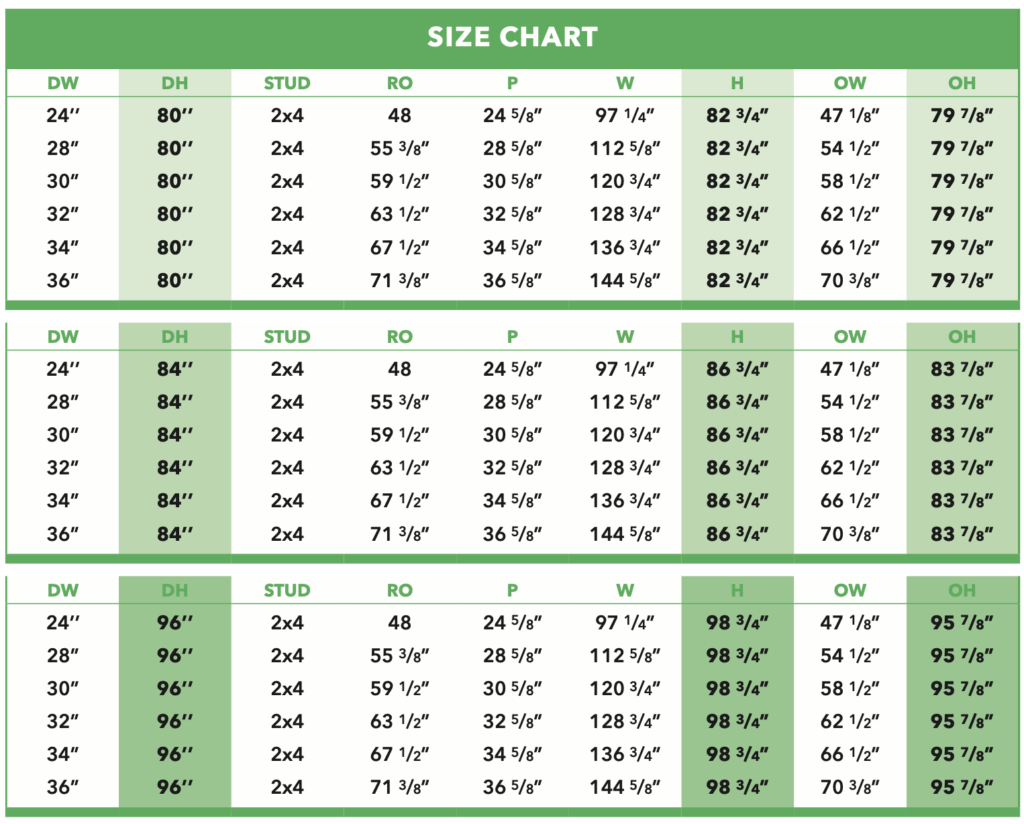

Double Pocket Door Specifications:

This kit is suitable for:

  • 1-3/8 in. – 1-3/4 in. thick doors
  • Up to 130 lbs. in weight per door
  • Fits 2×4 stud as well as other sizes – see below*
  • 1/2 in. drywall

What do I need to supply?

  • Door Panel 1-3/8 in. or 1-3/4 in. thick, max weight 130 lbs.
  • Studwork
  • 1/2 in. drywall
  • 2 wood jambs kits (see instructions)



*Different size studwork can be used however the head timber above the track needs to always be 2×4, additional layers of drywall on each side can then be used to make up the difference.
If you are still unsure please email us at info@rocketdoorframes.com or call 770-252-2661.
